NanoT Serien-
Nano size Tact Switch for SMT

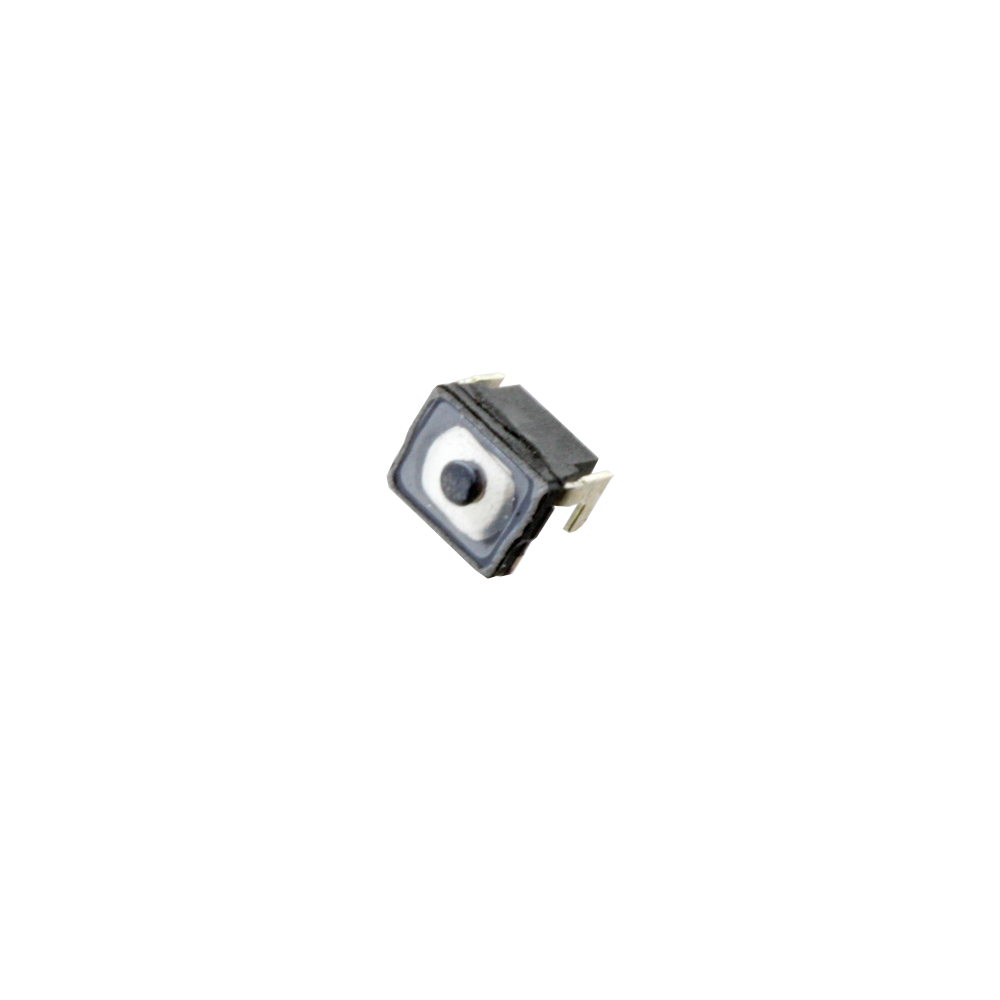

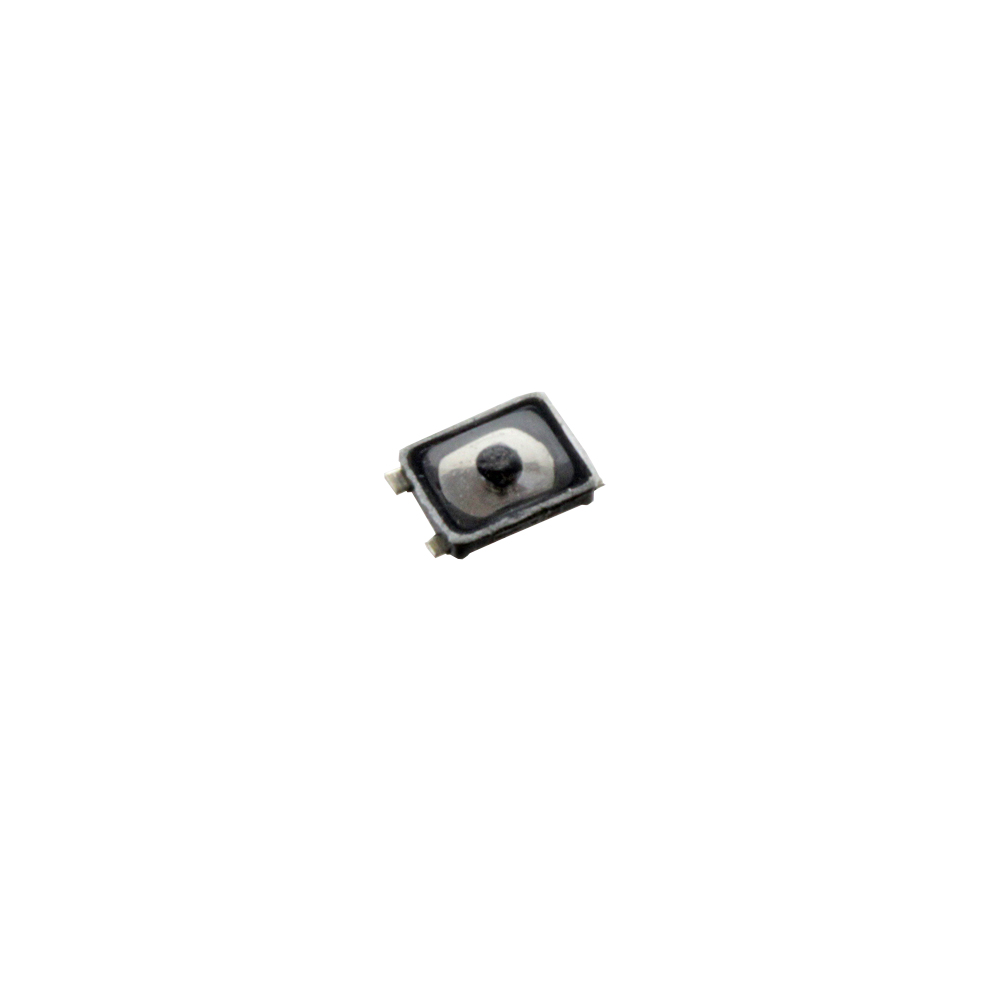

Tactile NanoT product image Tactile NanoT product image
Tactile NanoT product image
Tactile NanoT product image

Die Abbildung zeigt die Produktserie und gibt möglicherweise nicht die tatsächliche Teilenummer an.

img description Werkzeugkasten
img description Downloads
Technischen Support kontaktieren
Händlerbestand suchen
Muster anfordern
Video
NanoT series nano size tactile switch is the smallest ever in top actuated and side actuated version. The latest being available in full SMT or PIP for a stronger shear resistance.

Eigenschaften und Vorteile

  • SMT and PIP versions
  • 2.1 x 1.65 x 0.55 mm and 2.2 x 1.7 x 1.65 mm form factor
  • IP67

Typische Anwendungen

  • Hearing aids
  • Sport and health monitoring watches
  • IoT
  • Headsets

Technische Daten

  • Electrical Life:

    200000; 300000

  • Operating Temperature:

    -40°C to 85°C

  • Contact Rating:

    15V DC 20mA

  • Dielectric Strength:

    > 250 Vrms

  • Contact Resistance:

    < 500 milliohms

  • Solderability:

    Lead free reflow soldering process according with IEC61760-1

  • Insulation Resistance:

    > 100 megohms

= Am häufigsten

Ausgewählte Teile vergleichen
LOREM_4170
NanoT 160 BP
NanoT 240 BP
NanoT 240 AS
NanoT 160 BS
NanoT 100 AS
NanoT 160 AS
NanoT 240 BS
LOREM_7816 LOREM_6285 LOREM_2519 LOREM_4716 LOREM_2680 LOREM_4378 LOREM_7537 LOREM_6982 LOREM_3520 LOREM_4076 LOREM_7772 LOREM_5783 LOREM_6476 LOREM_7200 LOREM_2056 LOREM_9253 LOREM_8548
20mA @ 15VDC SPST-NO PIP Sealed - IP67 No/None Off-Mom 300.000 Hard Side Actuated PIP 2.2 x 1.7 x 1.65 mm 160 gf Tape & Reel
20mA @ 15VDC SPST-NO PIP Sealed - IP67 No/None Off-Mom 200.000 Hard Side Actuated PIP 2.2 x 1.7 x 1.65 mm 240 gf Tape & Reel
20mA @ 15VDC SPST-NO Surface Mount Sealed - IP67 No/None Off-Mom 200.000 Hard Top Actuated SMT 2.1 x 1.65 x 0.55 mm 240 gf Tape & Reel
20mA @ 15VDC SPST-NO Surface Mount Sealed - IP67 No/None Off-Mom 300.000 Hard Side Actuated SMT 2.2 x 1.7 x 1.65 mm 160 gf Tape & Reel
20mA @ 15VDC SPST-NO Surface Mount Sealed - IP67 No/None Off-Mom 200.000 Hard Top Actuated SMT 2.1 x 1.65 x 0.55 mm 100 gf Tape & Reel
20mA @ 15VDC SPST-NO Surface Mount Sealed - IP67 No/None Off-Mom 300.000 Hard Top Actuated SMT 2.1 x 1.65 x 0.55 mm 160 gf Tape & Reel
20mA @ 15VDC SPST-NO Surface Mount Sealed - IP67 No/None Off-Mom 200.000 Hard Side Actuated SMT 2.2 x 1.7 x 1.65 mm 240 gf Tape & Reel
