PTS850 Serien-
5.4 × 5.0 Side Actuated SMT Tact Switch

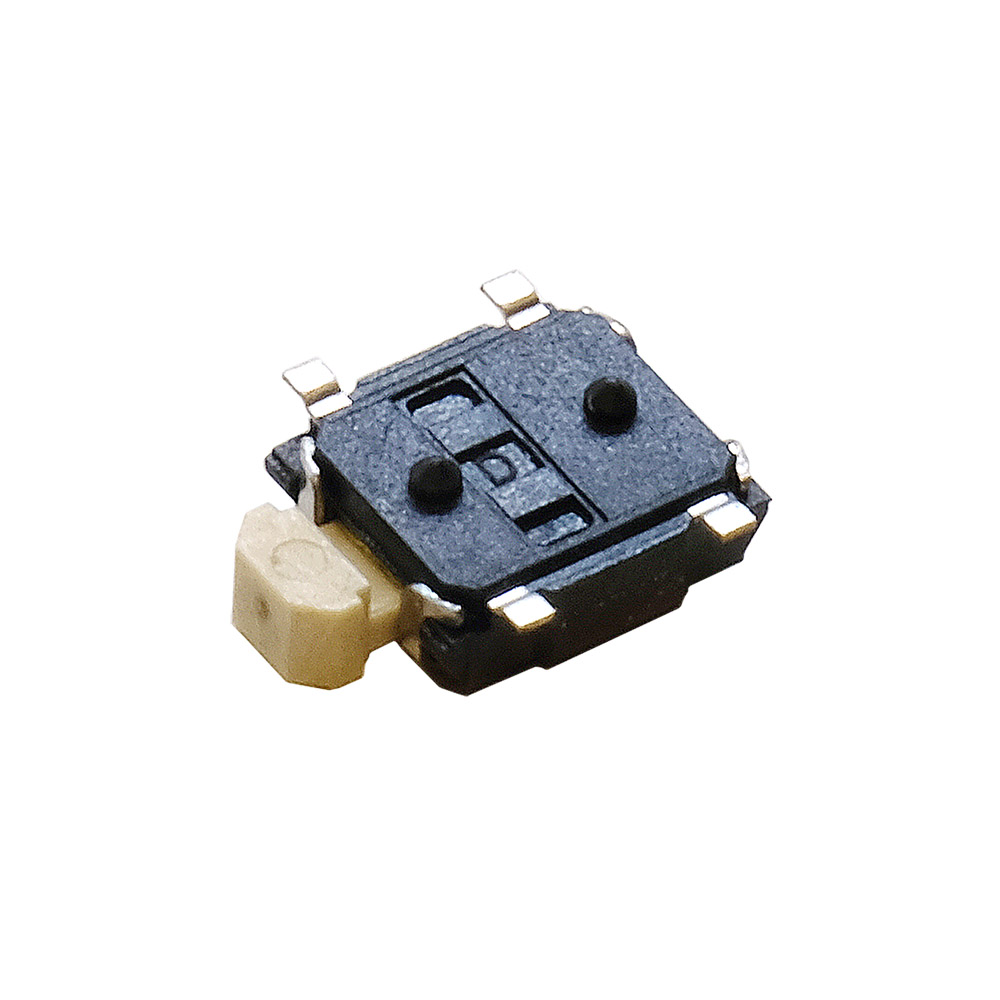

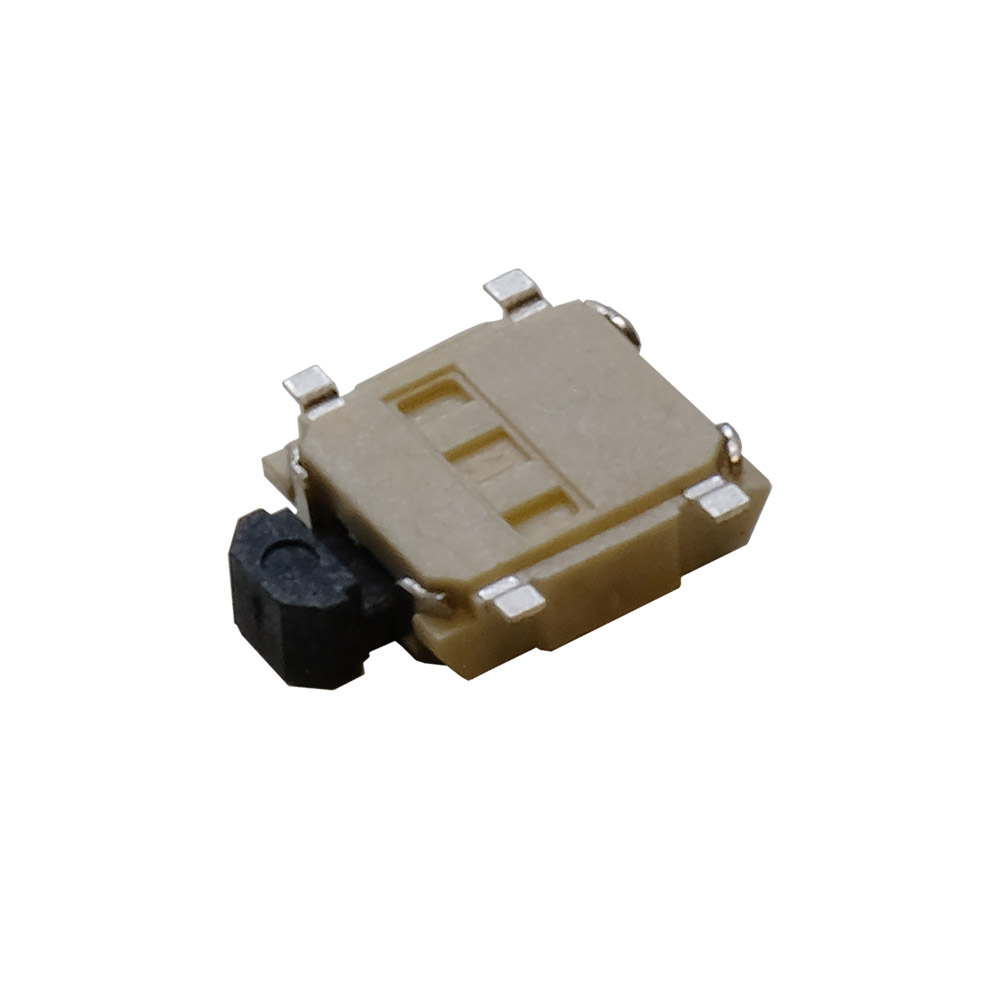

Die Abbildung zeigt die Produktserie und gibt möglicherweise nicht die tatsächliche Teilenummer an.
Werkzeugkasten
Downloads
PTS850 series, the low profile and small size side actuated tactile switch, has a size of only 5.4 x 5.0 mm and product height above PCB only 1.8 mm. With the low profile design and small size, PTS850 gives designers the flexibility to either free up space in their designs to add additional functionality or reduce the overall size of PCB. PTS850 series is available in 180 gf and 350 gf operating forces, with or without boss, which are the most common versions used in the market. The high quality and low profile PTS850 tactile switch is perfect solution to high-end consumer wearable and medical device markets.
Eigenschaften und Vorteile
- 5.4 x 5.0 x 1.8 mm package
- SMT termination
- Side actuated with or without boss design
- 180 and 350 gf versions
- Life cycles 50K
Typische Anwendungen
- Headphone/ Headset
- Health monitoring
- Sports watch
- Black box
- Bluetooth accessory
- Navigation devices
Technische Daten
-
Electrical Life:
50,000 cycles
-
Insulation Resistance:
100MΩ min.
-
Operating Temperature:
-40°C to 85°C
-
Contact Resistance:
500mΩ max.
-
Solderability:
Lead free reflow soldering process according with IEC61760-1
-
Contact Rating:
12 VDC, 50 mA
= Am häufigsten
| LOREM_7816 | LOREM_6285 | LOREM_2519 | LOREM_4716 | LOREM_2680 | LOREM_4378 | LOREM_7537 | LOREM_6982 | LOREM_3520 | LOREM_4076 | LOREM_7772 | LOREM_5783 | LOREM_6476 | LOREM_7200 | LOREM_2056 | LOREM_9253 | LOREM_8548 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DC12V 50mA max. | SPST-NO | Surface Mount | Unsealed | No/None | Off-Mom | 50.000 | Hard | 1.8 mm | Side Actuated | G Type | 5.4 x 5.0 mm | 180 gf | With Boss | Tape & Reel | ||
| DC12V 50mA max. | SPST-NO | Surface Mount | Unsealed | No/None | Off-Mom | 50.000 | Hard | 1.8 mm | Side Actuated | G Type | 5.4 x 5.0 mm | 180 gf | Without Boss | Tape & Reel | ||
| DC12V 50mA max. | SPST-NO | Surface Mount | Unsealed | No/None | Off-Mom | 50.000 | Hard | 1.8 mm | Side Actuated | G Type | 5.4 x 5.0 mm | 350 gf | With Boss | Tape & Reel | ||
| DC12V 50mA max. | SPST-NO | Surface Mount | Unsealed | No/None | Off-Mom | 50.000 | Hard | 1.8 mm | Side Actuated | G Type | 5.4 x 5.0 mm | 350 gf | Without Boss | Tape & Reel |
