TLS Serien-
Soft Sound Tact Switch

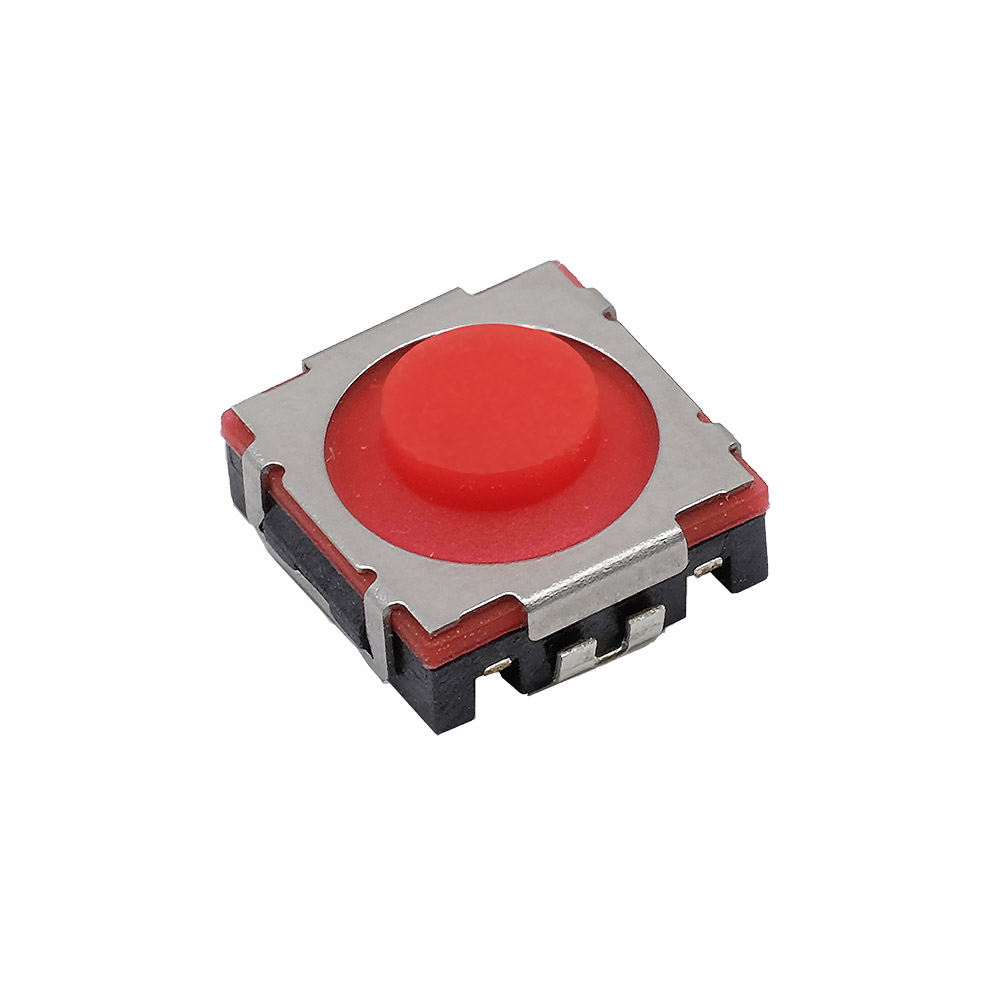

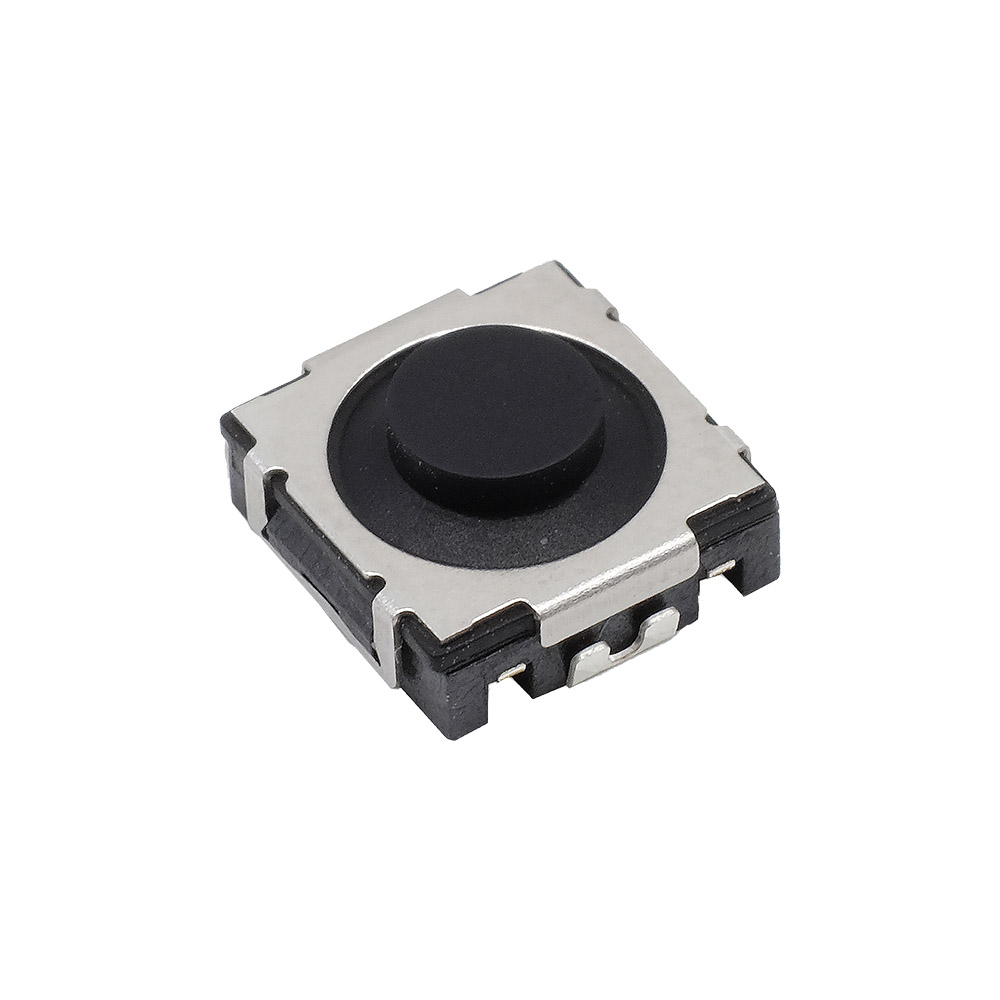

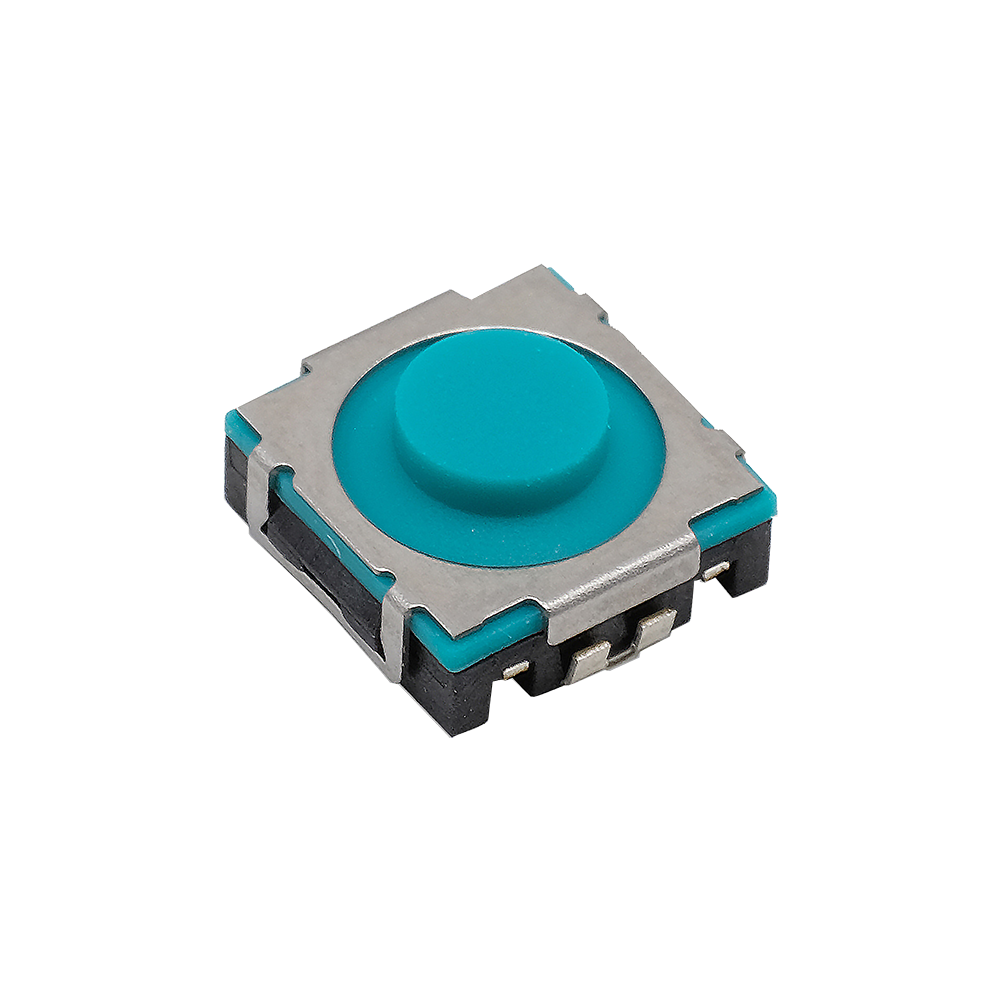

Die Abbildung zeigt die Produktserie und gibt möglicherweise nicht die tatsächliche Teilenummer an.
Werkzeugkasten
Downloads
TLS is an additional tactile series in a new form factor (8.6 x 8.40 x 3.95 mm) in SMT, with soft actuator and a flat cage for a positive tactile feedback with a soft sound. Its soft actuator & pre-travel help for an easier tolerance management with possible pre-load.
Eigenschaften und Vorteile
- 8.6 x 8.4 x 3.95 mm form factor
- SMT versions J leads
- IP54
- Soft sound and long travel
- Soft actuator & pre-travel for an easier tolerance management with possible pre-load
Typische Anwendungen
- Automotive interior controls
Technische Daten
-
Contact Resistance (initial):
< 100mO
-
Contact Rating:
16V DC 50mA
-
Electrical Life:
300,000 to 500,000
-
Solderability:
Lead free reflow soldering process according with IEC61760-1
-
Dielectric Strength:
> 250 Vrms
-
Operating Temperature:
-40°C to 90°C
-
Insulation Resistance:
> 100 MO
= Am häufigsten
| LOREM_4170 |
|---|
| LOREM_7816 | LOREM_6285 | LOREM_2519 | LOREM_4716 | LOREM_2680 | LOREM_4378 | LOREM_7537 | LOREM_6982 | LOREM_3520 | LOREM_4076 | LOREM_7772 | LOREM_5783 | LOREM_6476 | LOREM_7200 | LOREM_2056 | LOREM_9253 | LOREM_8548 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.8 VA | SPST-NO | Surface mount | Sealed - IP54 | No/None | Off-Mom | 500.000 | Soft | 3.95 mm | Top Actuated | J leads | 8.6 x 8.4 mm | 7 N | Tactile 50% | Tape & Reel | ||
| 0.8 VA | SPST-NO | Surface mount | Sealed - IP54 | No/None | Off-Mom | 500.000 | Soft | 3.95 mm | Top Actuated | J leads | 8.6 x 8.4 mm | 4 N | Tactile 30% | Tape & Reel | ||
| 0.8 VA | SPST-NO | Surface mount | Sealed - IP54 | No/None | Off-Mom | 500.000 | Soft | 3.95 mm | Top Actuated | J leads | 8.6 x 8.4 mm | 4 N | Tactile 50% | Tape & Reel | ||
| 0.8 VA | SPST-NO | Surface mount | Sealed - IP54 | No/None | Off-Mom | 300.000 | Soft | 3.95 mm | Top Actuated | J leads | 8.6 x 8.4 mm | 10 N | Tactile 30% | Tape & Reel | ||
| 0.8 VA | SPST-NO | Surface mount | Sealed - IP54 | No/None | Off-Mom | 500.000 | Soft | 3.95 mm | Top Actuated | J leads | 8.6 x 8.4 mm | 7 N | Tactile 30% | Tape & Reel | ||
| 0.8 VA | SPST-NO | Surface mount | Sealed - IP54 | No/None | Off-Mom | 300.000 | Soft | 3.95 mm | Top Actuated | J leads | 8.6 x 8.4 mm | 10 N | Tactile 50% | Tape & Reel |
