Illuminated Toggle Switch
Die Abbildung zeigt die Produktserie und gibt möglicherweise nicht die tatsächliche Teilenummer an.
Werkzeugkasten
Downloads

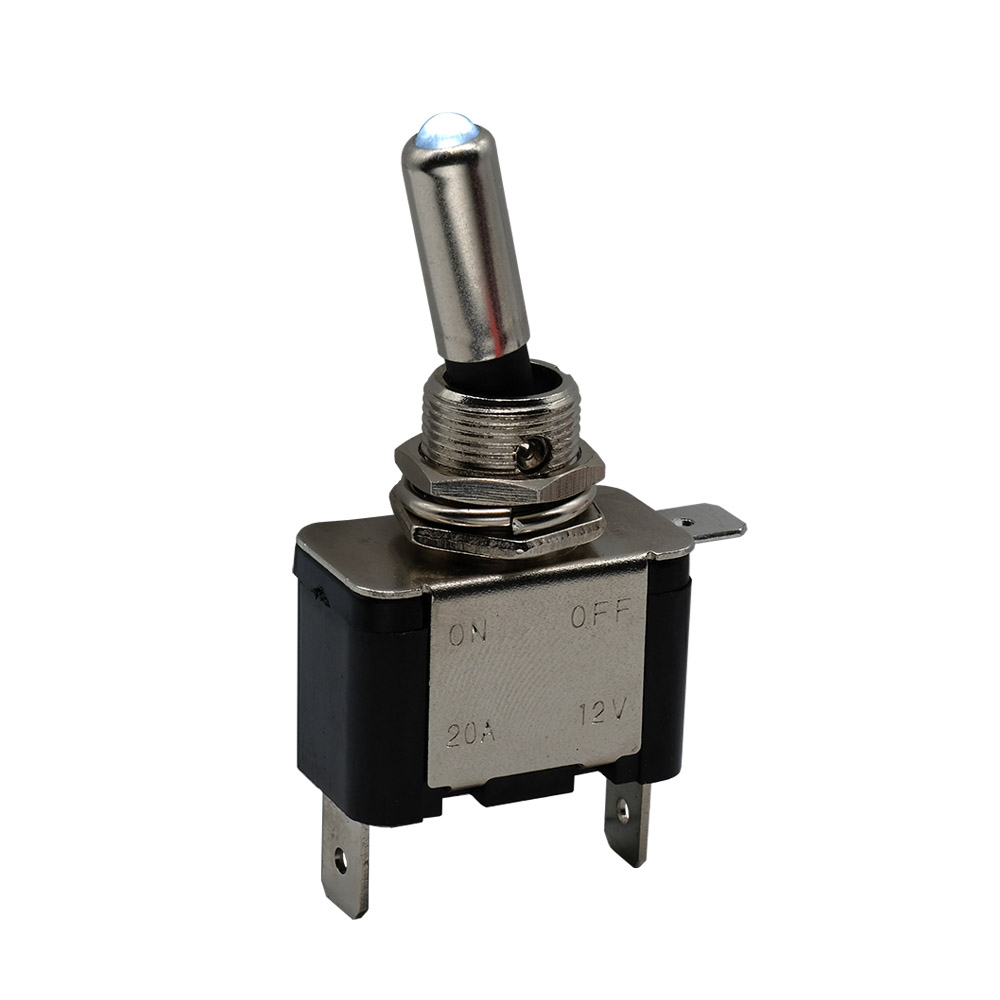

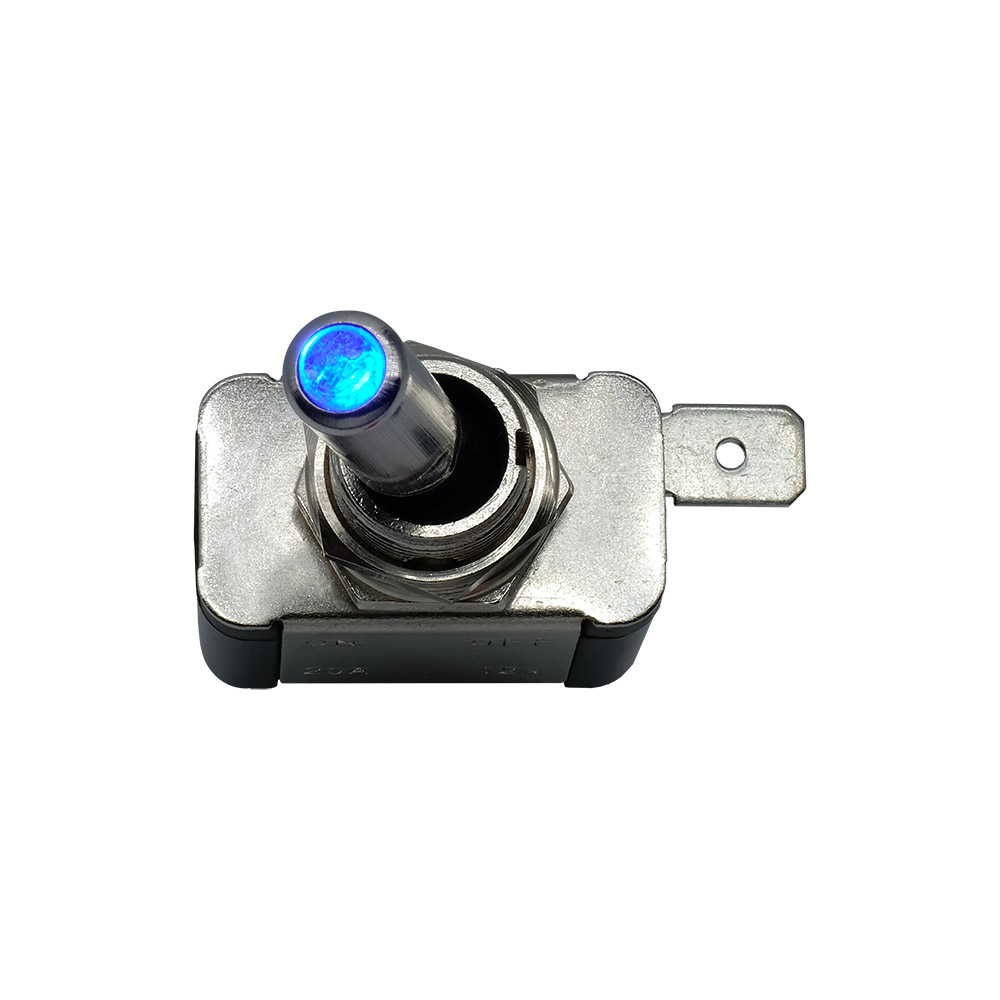

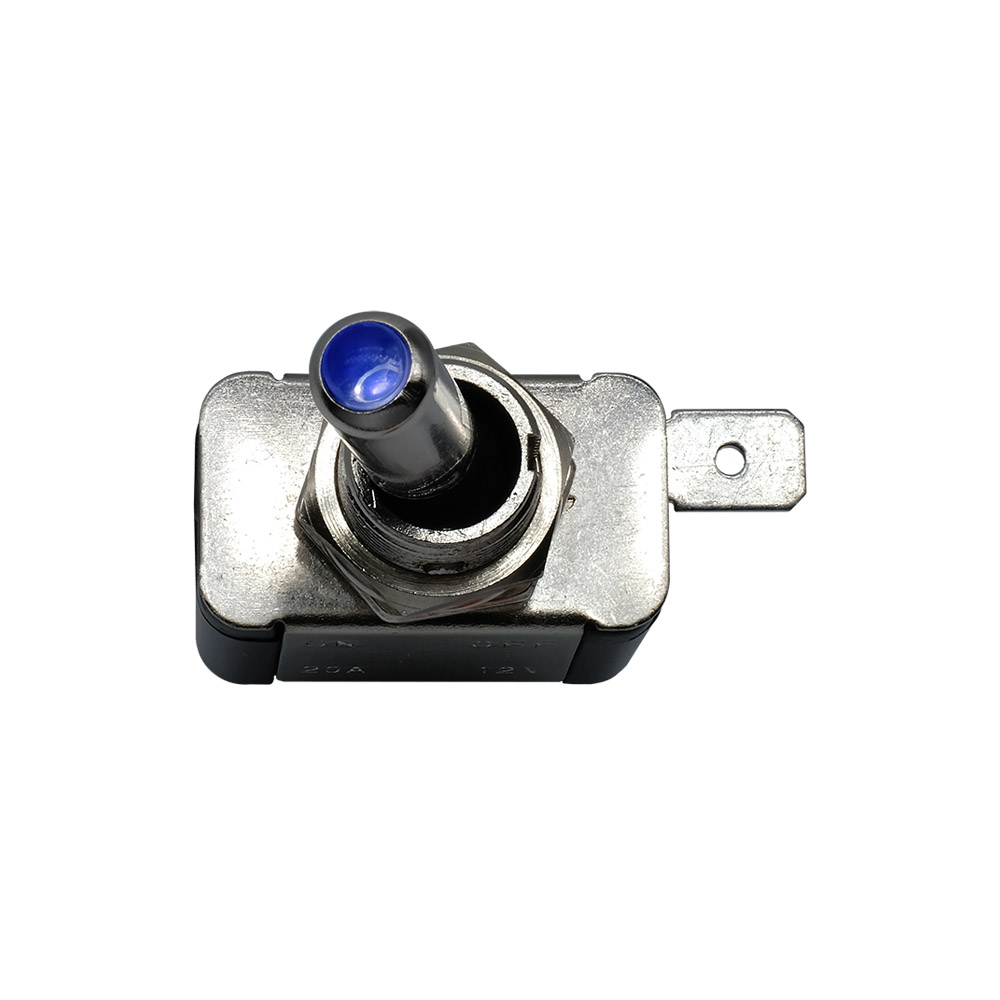

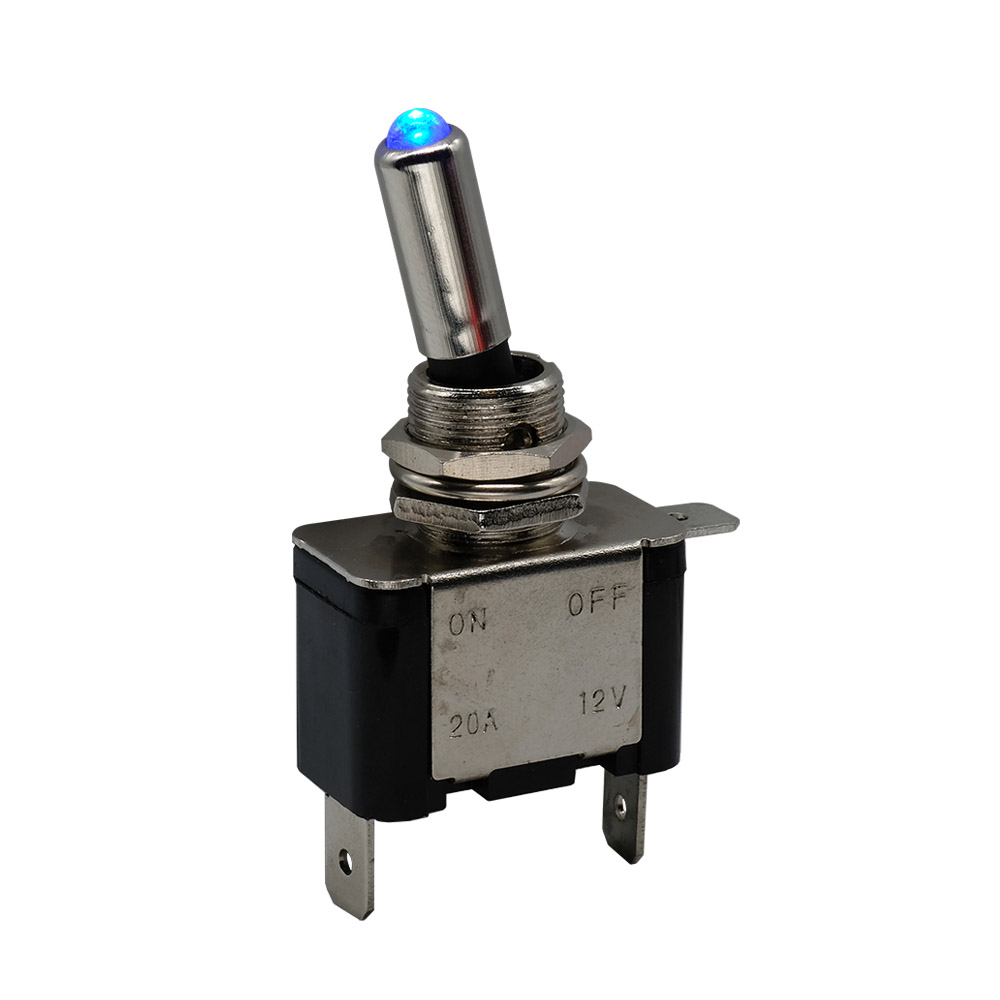

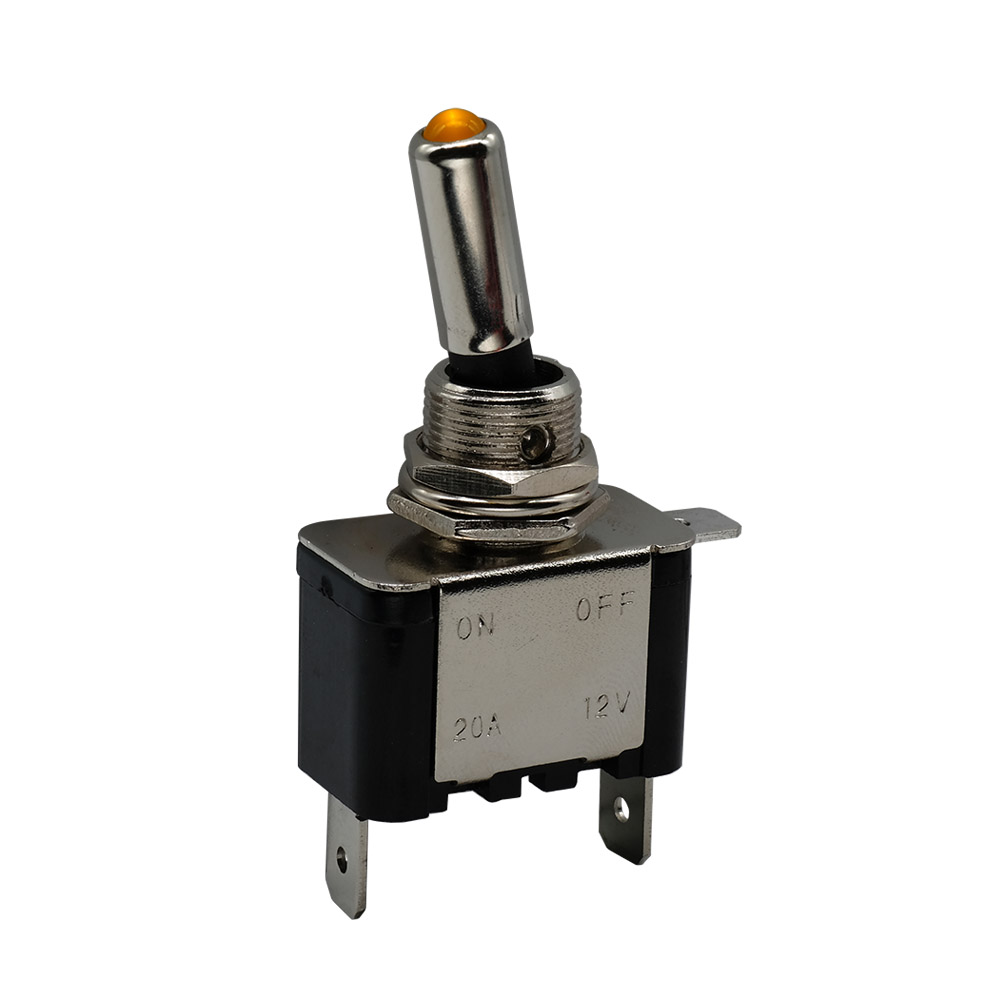

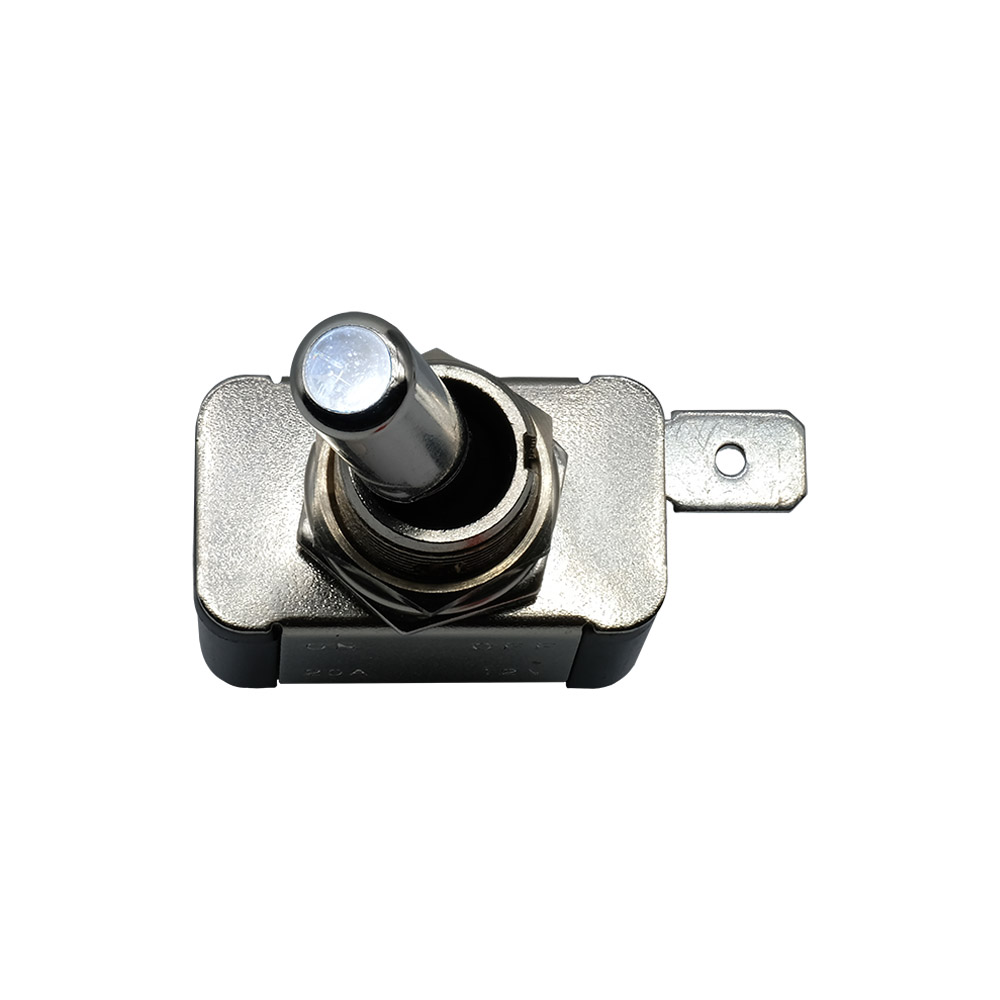

The ILT series is a LED illuminated, 20 Amp toggle that features a metal bushing for harsh environment applications, while most competing illuminated toggle switches use plastic bushings. The ILT series is ideal for a wide range of standard and harsh environment applications including control panels, heavy equipment, industrial instruments, instrumentation, LED lights, lifts & escalators, medical & equipment, security system, telecommunication systems and more.
Eigenschaften und Vorteile
- LED built in to toggle handle
- 6 LED color options to choose from
- Electrical ratings up to 20 Amps
- 6.3 quick connect terminals
- Easy installation - no soldering required
Typische Anwendungen
- Instrumentation
- Medical equipment
- Detection
- Control panels
- Heavy equipment
- Industrial instruments
- Security system
Technische Daten
-
Contact Rating:
20A
-
Electrical Life:
10,000
-
Insulation Resistance:
500V DC 1000M ohms min
-
Dielectric Strength:
1 minute 1500V AC
-
Operating Temperature:
-25°C to +85°C
-
Contact Resistance:
50m ohms max
= Am häufigsten
| Current Rating | Circuit | Mounting Type | Sealing | Illumination | Switch Function | Electrical Life Cycles | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Termination Style | Bushing Thread | Additional Features | Panel Cutout Dimensions | Packaging |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 20A (AC/DC) | SPST | Panel Mount, Rear, Threaded | Unsealed | Yes | On-Off | 10.000 | 120V | 12V | Toggle | 19.9mm | QC | M12 X 0.75 | Circular -12.2mm Dia | Tray | |
| 20A (AC/DC) | SPST | Panel Mount, Rear, Threaded | Unsealed | Yes | On-Off | 10.000 | 120V | 12V | Toggle | 19.9mm | QC | M12 X 0.75 | Circular -12.2mm Dia | Tray | |
| 20A (AC/DC) | SPST | Panel Mount, Rear, Threaded | Unsealed | Yes | On-Off | 10.000 | 120V | 12V | Toggle | 19.9mm | QC | M12 X 0.75 | Circular -12.2mm Dia | Tray | |
| 20A (AC/DC) | SPST | Panel Mount, Rear, Threaded | Unsealed | Yes | On-Off | 10.000 | 120V | 12V | Toggle | 19.9mm | QC | M12 X 0.75 | Circular -12.2mm Dia | Tray | |
| 20A (AC/DC) | SPST | Panel Mount, Rear, Threaded | Unsealed | Yes | On-Off | 10.000 | 120V | 12V | Toggle | 19.9mm | QC | M12 X 0.75 | Circular -12.2mm Dia | Tray | |
| 20A (AC/DC) | SPST | Panel Mount, Rear, Threaded | Unsealed | Yes | On-Off | 10.000 | 120V | 12V | Toggle | 19.9mm | QC | M12 X 0.75 | Circular -12.2mm Dia | Tray |
